Onboard Computer Programming for Swiss Solar Boat

This project focuses on designing a robust and future-proof framework for the onboard computer of the future boat prototype developed by the Swiss Solar Boat EPFL association.

Conducted during a semester project at EPFL, the work forms a crucial part of the team’s effort to develop a hydrogen-powered boat by 2026.

The framework integrates control systems, safety mechanisms, and data logging while ensuring modularity and scalability.

You can find the pdf version of the report for this project here.

Objectives

• Framework Development: Create a software and electronics architecture to integrate control systems like FCU, ECU, and SCU with a Ground Station.
• Modularity: Design a flexible system adaptable to evolving requirements.
• Real-Time Communication: Enable reliable communication between subsystems using CAN and ROS2 technologies.
• Testing Infrastructure: Develop Docker-based environments for efficient testing and deployment.
• Communication with ground station: Implement a secure communication channel for telemetry and remote control.

System Overview

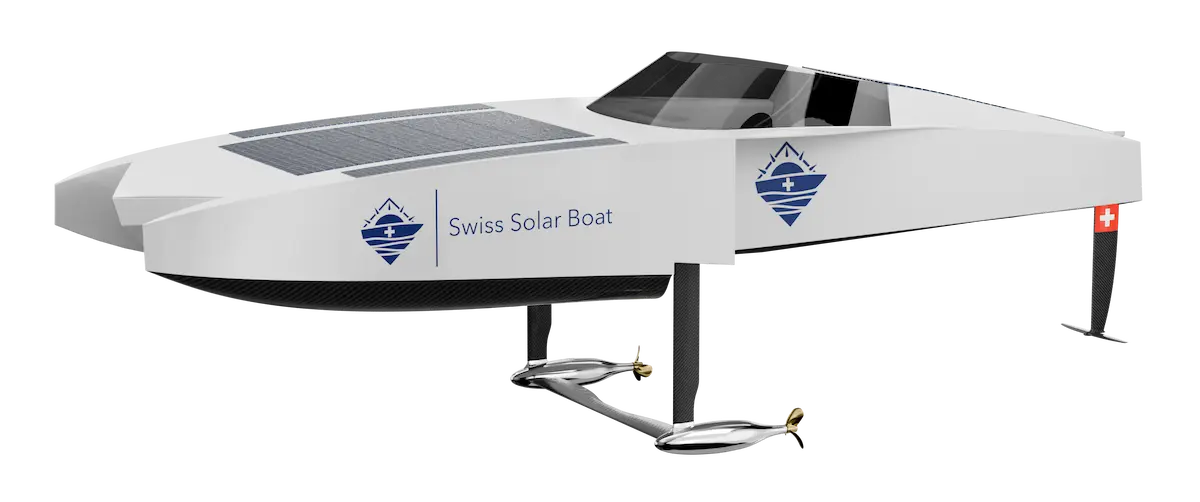

The REF is the new Swiss Solar Boat prototype, a hydrogen-powered vessel targeting the following specifications:

• 3 passengers.
• 150 km range.
• 30 knots top speed.

The onboard computer (OBC) acts as the central hub for:

• Flight Control Unit (FCU): Stabilization and navigation.
• Energy Control Unit (ECU): Hydrogen and battery management.
• Safety Control Unit (SCU): Monitoring and alarms.
• Communication with a ground station for telemetry and remote commands.

Challenges Addressed

• Hardware Integration: Define robust interfaces between components like the CAN bus, IMU, and LCD monitors.
• Software Modularity: Develop an abstraction layer to enable easy integration of subsystems.
• Platform Compatibility: Test hardware (e.g., Khadas VIM4, Raspberry Pi 4/5) for compatibility with MCP2515 CAN transceivers.
• Development Environment: Set up a Docker-based environment for testing without requiring physical hardware.

Work Flowchart

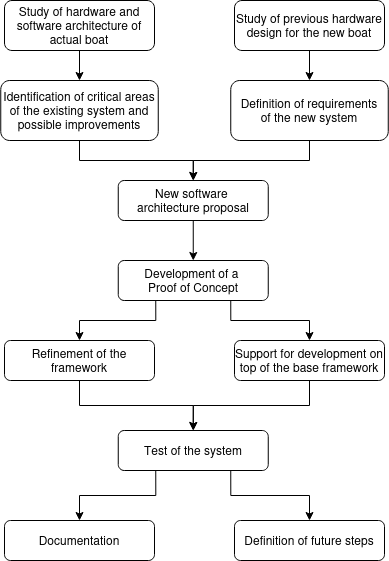

The flow chart below illustrates the development process:

ROS2 Integration

The framework leverages ROS2 for:

• Modular node-based architecture.
• Hardware abstraction for seamless subsystem integration.
• High-level communication using topics, services, and actions.

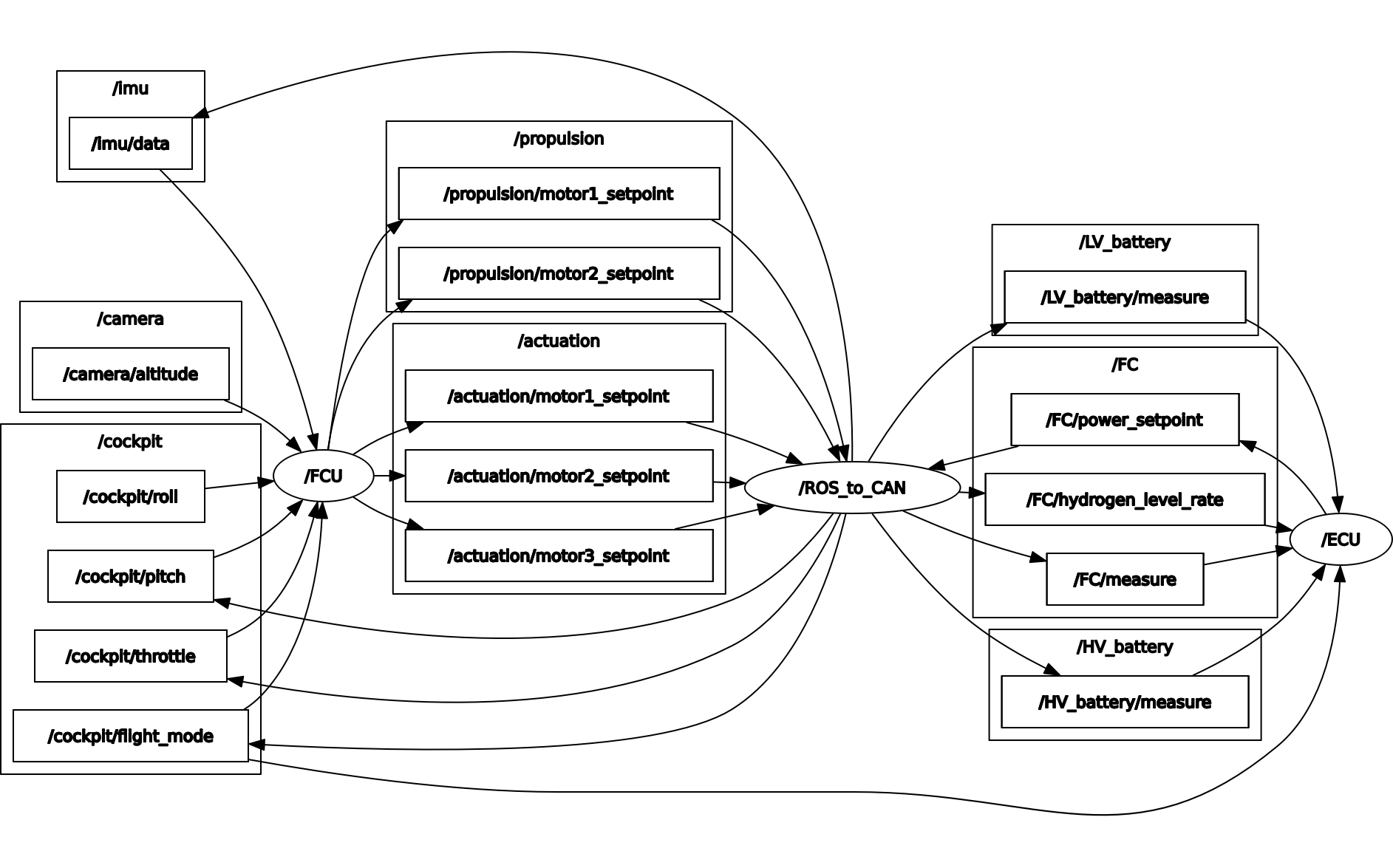

The ROS2 graph below illustrates the system architecture:

CAN-to-ROS Interface

Developed a proof-of-concept CAN_to_ROS node:

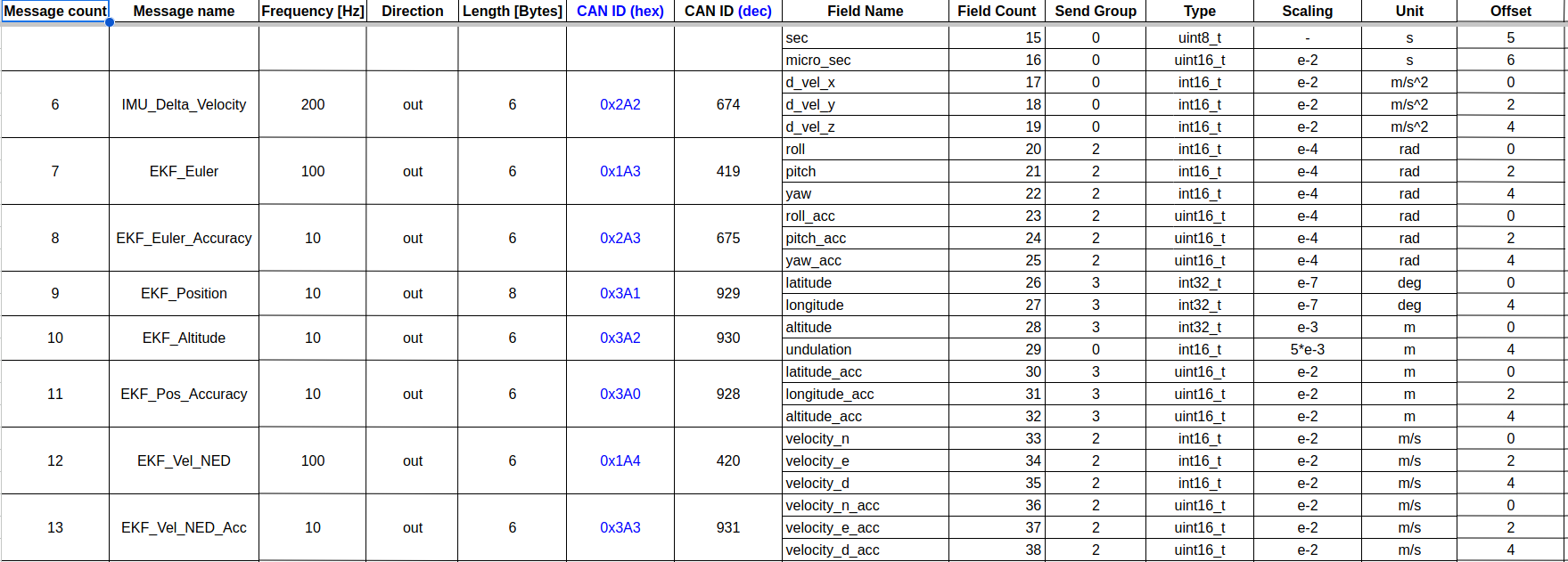

• Translates CAN bus messages into ROS topics for higher-level processing.
• Uses Python and the Python-CAN library for prototyping.
• Future versions will incorporate DBC files for enhanced modularity.

Development Environment

A Docker-based environment was created to:

• Simulate the OBC’s environment on any machine.
• Streamline the development and testing processes.
• Include essential tools like ROS build systems and debugging utilities.

Hardware Testing

Compared three potential onboard computers:

• Khadas VIM4: High performance but poor community support.
• Raspberry Pi 4: Reliable and well-documented.
• Raspberry Pi 5: Promising but untested during this phase.

Testing & Validation

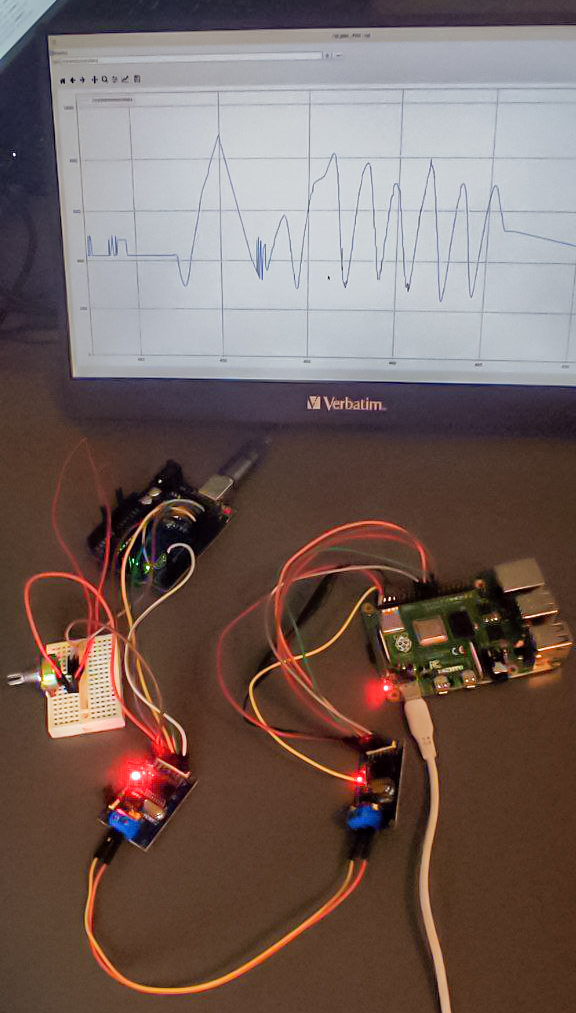

Tests were conducted using:

• Arduino: Generating simulated sensor data over CAN.
• Raspberry Pi 4: Hosted ROS2 and CAN_to_ROS modules.
• Wireguard VPN: Facilitated ground station communication.

The Proof of Concept confirmed the feasibility of the design and provided a foundation for future improvements.

Future Work

• Enhanced CAN-to-ROS Module: Use DBC-based parsing for better maintainability.
• Subsystem Integration: Develop specific nodes for FCU, ECU, and SCU.
• Final OBC Selection: Evaluate Raspberry Pi 5 for performance and compatibility.
• Optimization Tools: Incorporate tools like rosbag, RViz, and Gazebo for system development.
